Connected device for optimised workshop reception of a vehicle.

SCANDIAG® provides precise measurement of the wear on discs and tyres using a combination of laser and camera technology, and allows to print out or send by email or text message a report of these two components.

Tool fitted with a rechargeable lithium battery, offering some 500 measurements

between charges (around 60 vehicles).

– The report details the wear measurements by means of various graphics that are clear and comprehensible.

– Easy to use and ergonomically designed, SCANDIAG® lets you conduct rapid

inspection of brake discs and tyres without removing the wheels in the vast

majority of cases.

– This equipment is supplied with intuitive software*, you can choose to test:

– discs only,

– tyres only,

– both at once (Fast Check).

– External Power Source Input: 100/240 VCA

– External Power Source Type: USB, Mini-B

– DX.TSCANPB Input: 5/0.5 VCC/ACC

– DX.TSCANPB Internal battery type: Li-Ion

-DX.TSCANPB Internal Battery Capacity/Voltage: 0.620/3.7 Ahr/VCC

– Emission Limit/Laser Classification: 3R

-Wireless Communication: Built-in Bluetooth® module

– Operating Temperature: 0 – 40 °C

– Storage Temperature: -20 – 60 ° C

– Complies with Directive 2014/53/EU

– CE compliant: on USB flash drive or https://www.facom.com/services/user-manuals/User-Manuals.html

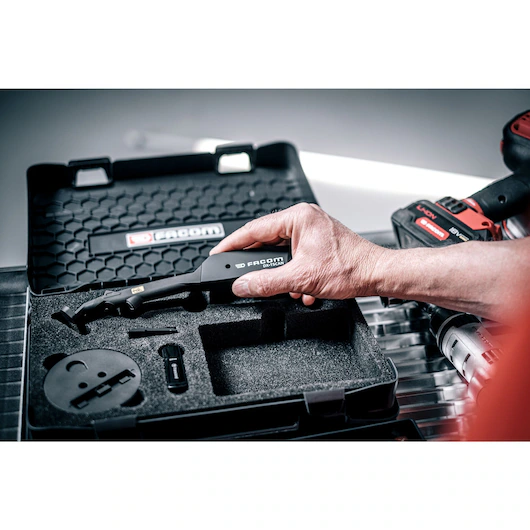

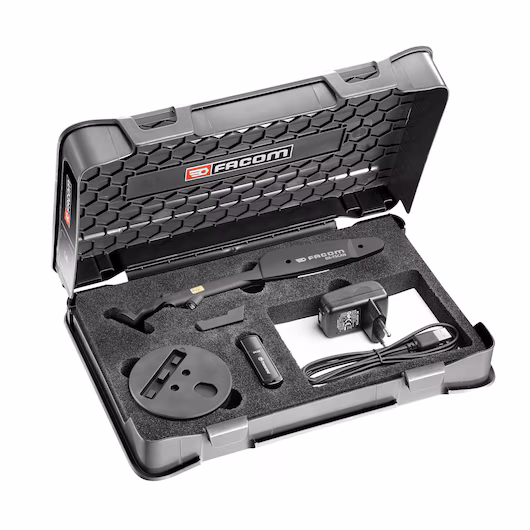

– Supplied in plastic case BPMBOXM and foam tray, dim. (L.xW.xH.): 330x215x60 mm
