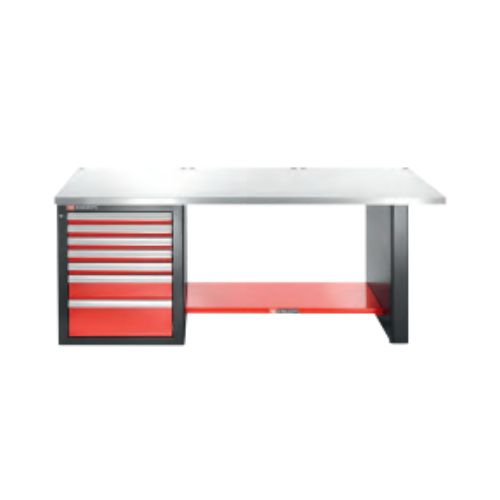

• Description:
• One 7-drawer unit JLS2-MBS7T:
– 5 drawers 60 mm high, 1 drawer 130 mm high, 1 drawer 200 mm high.
– Drawer useful size: L.569 x D.421 mm
– Centralized keylock
– Fitted with 4 jack-mounted swivel feet for perfect adjustment.
– Overall dimensions: L.722 x D.701 x H.810 mm
• 1 foot JLS2-PSB:
– Foot made of epoxy painted sheet steel (thickness 12/10ths).
– Fitted with jack-mounted swivel feet for adjustment providing
complete stability irrespective of the type of floor.
– Dimensions: L.100 mm x H.810 mm x D.650 mm.
– Colour black 9004.
• A JLS2-PBST3 worktop:
– Panel made of multi-ply beech of thickness 40 mm covered
with 10/10th 304 L brushed stainless steel for improved impact
and heat resistance (edge also covered – painted metal cover for the sides).
Sides will be protected by a finishing painted metal sheet.
– Fast and easy assembly thanks to pre-drilled metallic inserts positions.
Capable of supporting loads: 1 ton.
• A JLS2-TRAB3 cross-beam
– Multifunction cross beam: connecting, reinforcement and storage space,
2 possible positions: horizontal or vertical.
– Made of epoxy painted sheet steel (thickness 12/10ths)
